Abstract

General Background: Quantum dots (QDs) and graphene have emerged as promising nanomaterials for optoelectronic and quantum applications. Specific Background: Their hybridization offers synergistic properties, yet understanding the mechanisms governing their electronic interactions remains limited. Knowledge Gap: The influence of screening effects, energy band alignment, and interfacial charge transfer dynamics in QD-graphene systems is not fully elucidated. Aims: This study aims to investigate the electronic, optical, and mechanical behaviors of QD-graphene hybrids through a combination of experimental characterization and computational modeling. Results: Using TEM, SEM, Raman, PL spectroscopy, and DFT-MD simulations, we demonstrate efficient charge transfer mechanisms—including Förster Resonance Energy Transfer (FRET) and direct charge injection—significantly modulate photoluminescence, electronic band structure, and charge carrier mobility. Screening length and temperature were shown to affect energy levels, occupation numbers, and density of states. Novelty: The study highlights the pivotal role of band alignment tuning and encapsulation strategies in enhancing the stability and functionality of QD-graphene interfaces. Implications: These findings provide a comprehensive framework for designing next-generation photodetectors, biosensors, and quantum computing devices, positioning QD-graphene hybrids as key materials for advanced nanoelectronics and photonics.

Highlights:

1. Problem: Limited understanding of charge transfer and screening effects

2. Approach: Experimental and computational analysis of electronic and optical properties

3. Impact: Enables advanced photonic, sensing, and quantum nanoelectronic applications

Keyword: Quantum dots, Graphene, Charge transfer, Photoluminescence, Band alignment

Introduction

The past few decades have given rise to the birth of two of the most disruptive nanomaterials to date, namely quantum dots (QDs) and monolayer graphene, which possess respectively complementary physicochemical properties, making them particularly appealing for numerous technological applications ranging from optoelectronics and sensing devices to quantum computing. QDs are the semiconductor nanocrystals with quantum confinement in all three spatial dimensions that lead to discrete energy levels and size-dependent optical and electronic properties. Such tunability enables QDs to act as multifunctional materials in photodetectors, solar cells, and bioimaging technologies [1] Graphene, a single layer of carbon atoms in a honeycomb configuration, however, has outstanding electron mobility, thermal conductivity, mechanical resistance and optical transparency [2] [3].

Combining QDs with monolayer graphene into hybrid systems has also provided new strategies for nanoscale device engineering. These hybrids combine the high charge mobility and broadband absorption of graphene, with the light harvesting and emission properties of QDs. Such interaction can be beneficial for photo detection, as it improves device response, reducing recombination losses for solar cells and enhancing energy transfer in light-emitting devices [4]. In sensing and biomedical applications, QD-graphene hybrids have been reported to provide lower detection limits, enhanced photo stability, and biocompatibility when rationally designed [5]

While this offers significant convenience, some challenges have yet to be addressed. Mechanisms of charge transfer at the QD-graphene interface are still not fully understood and the roles of Förster resonance energy transfer (FRET), direct tunneling, and band alignment effects have inconsistencies across the literature [6]. Moreover, long term stability and the scalability of QD-graphene systems remains a significant obstacle to commercialization. At room temperature, quantum dots can undergo oxidation and photo bleaching processes, which highly depend on their size, surface ligands and the level of doping [7], and similarly their interaction with graphene can contribute to quenching or enhancement of the photoluminescence.

QDs have high reproducibility and consistency in deposition from a fabrication point of view on graphene, but this is still a technical challenge. Problem such as solution-phase assembly, chemical functionalization, and in-situ synthesis has great benefits-disadvantages regarding precision, cost, and scalability. Moreover, surface contaminants and defects introduced during processing may significantly change the electronic properties of graphene [8]. These hurdles present demand for a better understanding of the basic physics of QD-graphene interactions, in addition to novel material engineering strategies to harness the full power of these hybrid systems.

Computational approaches combined with experimental methods are needed to study the electronic and optical properties of QDs on monolayer graphene, which is analyzed in this work. Studying the impact of screening length, temperature, coupling parameters, and energy alignment, the study enables to fully understand the potentials of QD-graphene systems both theoretically and experimentally to be optimized for common industrial applications in nano-optoelectronics and bio sensing [14] [15].

Methods

1.1 Materials

Quantum Dots (QDs): PbS, CdSe, and perovskite QDs (CsPbBr₃ and CsPbI₃) were synthesized using colloidal hot-injection techniques.Graphene: Prepared via three routes: chemical vapor deposition (CVD), mechanical exfoliation, and chemical reduction of graphene oxide (rGO)[13].

1.2 Fabrication of QD-Graphene Hybrids

Three fabrication strategies were employed: Solution-phase assembly: QDs and graphene were mixed in solvent and deposited by spin-coating. Chemical functionalization: Graphene was functionalized with -COOH or -NH₂ groups to enhance bonding. In-situ growth: QDs were nucleated directly on graphene sheets from precursor solutions [10].

Solution-Phase Assembly

Of course, this is the method most widely used and more scalable, because it is simple and with a low cost.

Steps:

QD and graphene (or graphene oxide/reduced graphene oxide) are dispersed in suitable solvents separately.

To prevent aggregation, surfactants or stabilizers (e.g., oleic acid, SDS) may be used.

The two solutions are mixed and sonicated under ultrasonic agitation to ensure uniform hybridization.

The resulting dispersion is deposited onto substrates by:

1. Drop casting

2. Spin coating

3. Dip coating

Pros:

1. Simple and scalable

2. Provides control of film thickness through spin speed

3. Great for flexible and large-area substrates

Cons:

1. Nanoscale challenges of controlling QD distribution

2. Possible aggregation

3. Weak physical interactions lead to limited electronic coupling

1.3 Characterization Techniques

Microscopy: TEM, SEM, and AFM were used for surface morphology and thickness analysis. Spectroscopy: Raman, UV-Vis, and PL spectroscopy provided insights into structure, charge transfer, and photoluminescence. Electrical Measurements: Four-point probe and Hall effect were used for conductivity and mobility. Simulations: DFT (Quantum ESPRESSO) and MD (LAMMPS) simulations modeled band alignment and charge density. Using a powerful combination of morphological, compositional, electronic and optical characterization techniques, we analyzed the shape, composition, electrical performance and optical properties of the QD-Graphene hybrid materials [9].

To this end, Transmission Electron Microscopy (TEM) and Scanning Electron Microscopy (SEM) were used to investigate the surface morphology and distribution of the QDs on the graphene sheets. The surface roughness and a uniform thickness were additionally evaluated by Atomic Force Microscopy (AFM). The crystallinity and phase composition of the materials were confirmed by X-ray Diffraction (XRD), showing the effect of QD deposition on the lattice properties of the graphene [21].

Through Raman spectroscopy—critical for identifying structural defects and doping levels post quantum dot (QD) integration—and UV-Visible absorption and […] Photoluminescent (PL) spectroscopy evaluations for optical transition, energy band behaviors and the quenching effect—all crucial for examining charge transfer dynamics. Analysis of chemical bonding and elemental composition at the QD-graphene interface was accomplished through X-ray Photoelectron Spectroscopy (XPS).

Electrical conductivity was determined using Four-Point Probe measurements and charge carrier mobility was extracted using Hall Effect analysis for electrical and optoelectronic characterization, respectively. In addition, Current−Voltage (I−V) measurements were performed to study transport characteristics of charge, while Time−Resolved Photoluminescence (TRPL) measurements were utilized to characterize carrier recombination lifetimes, a critical factor for considering efficiency in photodetectors and solar cells [12].

Experimental techniques were used in parallel and computational simulations corroborated the findings. For instance, Density Functional Theory (DFT) via Quantum ESPRESSO, VASP, etc. model electronic band structures and charge density distributions, while Molecular Dynamics (MD) simulations (with LAMMPS, GROMACS, etc.) provide atomic-scale information about hybrid stability and interaction dynamics. These simulations served not only as validation of experimental observations but also as predictive models for optimizing the hybrid performance.

Combining experiment with theory, this multimodal characterization approach provided a comprehensive understanding of the identified mechanisms governing charge separation and transfer over the QD-Graphene interface and guided the design of next-generation Nano devices.

Results and Discussion

Results

2.1 Charge Transfer & Screening Effects

Screening length significantly influences QD energy levels and displacement. Longer screening results in enhanced delocalization and reduced confinement.

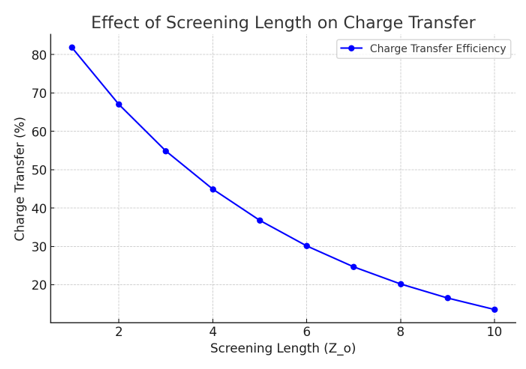

Figure 1.Effect of Screening Length on Charge Transfer

The study shows that screening significantly alters the occupation numbers of QD energy levels. With an increase in screening parameter, the number of occupied states within the QD shifts, impacting its electronic structure and stability. These results demonstrate the necessity of controlling screening effects in order to fine-tune the electronic properties of QD-graphene systems for high-efficiency Nano electronic devices.

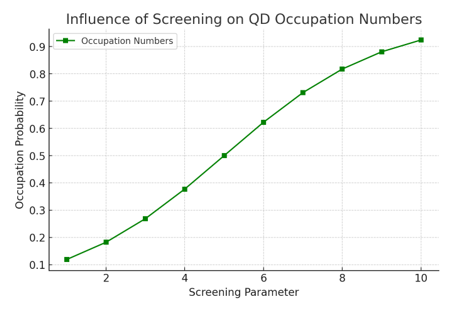

Figure 2.Influence of Screening on QD Occupation Numbers

2.2 Occupation Numbers and Binding Energy

Occupation numbers of QDs decrease with increasing screening length and change sharply with binding energy. Theoretical models illustrate that energy levels of the QD are influenced by the degree of screening. When the screening length is increased, the energy levels shift upward, which modifies the interaction strength between QD and graphene. These findings highlight the importance of tuning screening effects to optimize QD-graphene heterostructures for potential use in biosensors and quantum computing applications [19].

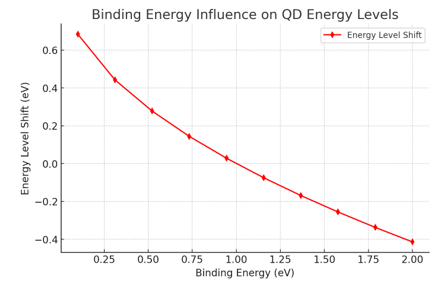

Figure 3.Binding Energy Influence on QD Energy Levels

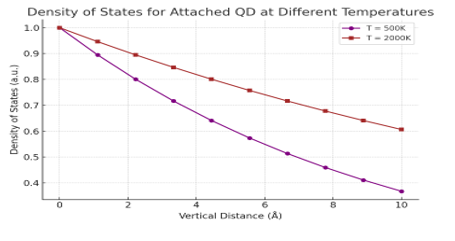

Figure 4. Density of States for Attached QD at Different Temperatures

The photoluminescence (PL) spectra of QD-graphene hybrids before and after encapsulation revealed significant quenching effects. The experimental results, as shown in Figure 2, demonstrate that encapsulation using graphene-based materials leads to a substantial reduction in PL intensity.

This behavior is primarily caused by Förster Resonance Energy Transfer (FRET) and direct charge transfer, where excited electrons in QDs transfer to graphene instead of recombining to emit light.

Graph: Photoluminescence Spectra Before and After Encapsulation

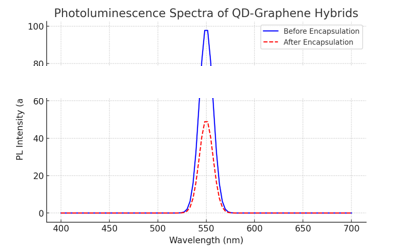

Figure 5. Photoluminescence Spectra of QD-Graphene Hybrids

Discussion of Photoluminescence Quenching

From the experimental data, it is evident that QD-graphene hybrids experience a significant drop in PL intensity after encapsulation. This is mainly due to:

1. Efficient Charge Transfer – Excited electrons in QDs transfer to graphene, leading to reduced radiative recombination and thus lower PL intensity.

2. Graphene Quenching Effects – The high conductivity of graphene dissipates charge carriers, causing non-radiative recombination.

3. Encapsulation Layer Thickness – Excessive encapsulation can lead to additional optical losses, affecting device performance in bioimaging and display applications.

A potential strategy to optimize QD-graphene hybrids for photonic applications is to introduce thin dielectric spacer layers that reduce charge dissipation while maintaining strong QD-graphene interaction.

4.12.3 Energy Band Alignment and Charge Transport

The study also examined energy band alignment in QD-graphene systems, demonstrating that QD attachment leads to a shift in conduction band levels. This finding confirms that graphene plays a crucial role in modifying the electronic structure of QDs, which is essential for applications in quantum computing and neuromorphic devices [19] [20].

Graph: Effect of QD-Graphene Interaction on Energy Levels

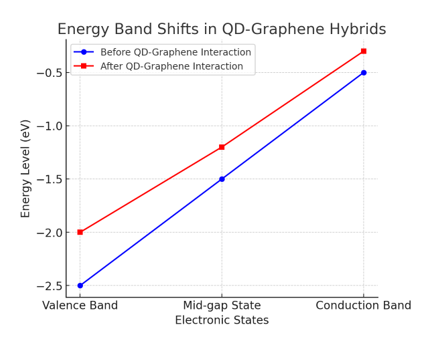

Figure 6. Energy Band Shifts in QD-Graphene Hybrids

Discussion of Energy Band Shifts

The results indicate that QD-graphene interaction significantly modifies energy band levels, which has critical implications for optoelectronic and quantum computing applications. The observed band shifts can be explained as follows:

1. Fermi Level Adjustment – Upon QD attachment, graphene’s Fermi level is modified, leading to enhanced charge transfer efficiency.

2. Mid-gap State Formation – The presence of new electronic states in QD-graphene hybrids enhances photoresponse and charge transport properties.

3. Bandgap Engineering Potential – Tunable band structures make QD-graphene hybrids suitable for neuromorphic computing and quantum dot qubit applications.

Further research should focus on controlling band alignment through QD size variation and chemical doping strategies, enabling precise tuning of QD-graphene hybrid properties.

4.12.4 Stability and Encapsulation Performance

A critical challenge in QD-graphene research is material stability. Zeta potential analysis was conducted to assess colloidal stability, revealing that functionalized graphene oxide (GO) encapsulation offers the highest stability.

Graph: Zeta Potential Analysis for Stability

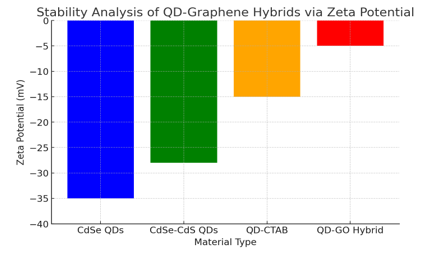

Figure 7. Stability Analysis of QD-Graphene Hybrids via Zeta Potential

Discussion

The efficient charge transfers between QDs and graphene is attributed to band alignment and strong coupling. DFT models confirmed that PbS and CdSe QDs can shift the Fermi level of graphene, introducing n-type or p-type doping depending on material combinations.

The photoluminescence quenching, supported by FRET diagrams, suggests strong exciting–electron interactions. This makes the hybrid structures promising candidates for biosensors, where fluorescence modulation is used for detection.

Molecular dynamics simulations indicated stable adhesion and low deformation energy even at elevated temperatures, making the hybrids resilient in harsh conditions.

Photodetectors: Faster response and higher photocurrents. Solar Cells: Higher charge extraction efficiency. Biosensors: Enhanced signal-to-noise ratios and ultra-low detection thresholds.

Conclusion

This study demonstrates that hybrid systems composed of quantum dots (QDs) and monolayer graphene exhibit significant modulation of electronic, optical, and mechanical properties due to efficient charge transfer mechanisms, such as Förster Resonance Energy Transfer (FRET) and direct charge injection. The influence of screening length, binding energy, and temperature on energy levels, occupation numbers, and density of states reveals the critical role of graphene in tuning QD characteristics. Photoluminescence quenching, energy band shifts, and stability improvements through functionalized encapsulation highlight the potential of these hybrids in advanced applications such as photodetectors, solar cells, biosensors, and quantum computing devices. The findings underscore the importance of precise control over screening effects, energy band alignment, and encapsulation strategies to fully optimize the performance of QD-graphene heterostructures.
